S4 oil pressure Gauge

Post by BrianReynolds »

I am assembling my 57 S4 engine, I would like to incorporate an oil pressure gauge but cannot see a suitable connection point on the engine. I am reluctant to drill and tap into the internal pressure galleries, any ideas? Thanks.
Top
User avatar
Roger Gwynn
Holder of a Golden Anorak
Holder of a Golden Anorak
Posts: 2005
Joined: Tue May 28, 2013 11:34 am
Location: Norwich, UK
Contact:
Contact Roger Gwynn

Re: S4 oil pressure Gauge

Post by Roger Gwynn »

I plumbed one in of the rocker feed pipe.
Roger Gwynn, caretaker of the club's works drawings and machine register, membership secretary 2015-26. Director of AOMCC, Draganfly Motorcycles, Craven Equipment and Supreme Motorcycles mostly retired.
Top
User avatar
dave.owen
Holder of a Golden Anorak
Holder of a Golden Anorak
Posts: 1982
Joined: Wed Mar 23, 2011 10:05 pm
Location: swindon
Contact:
Contact dave.owen

Re: S4 oil pressure Gauge

Post by dave.owen »

I have the same using a morgo gauge. Ive also an oil pressure warning light .

Dave
AOMCC Treasurer
Top
david.anderson
Holder of a Golden Anorak
Holder of a Golden Anorak
Posts: 1633
Joined: Mon Mar 28, 2011 4:52 am
Location: south coast NSW Australia
Contact:
Contact david.anderson

Re: S4 oil pressure Gauge

Post by david.anderson »

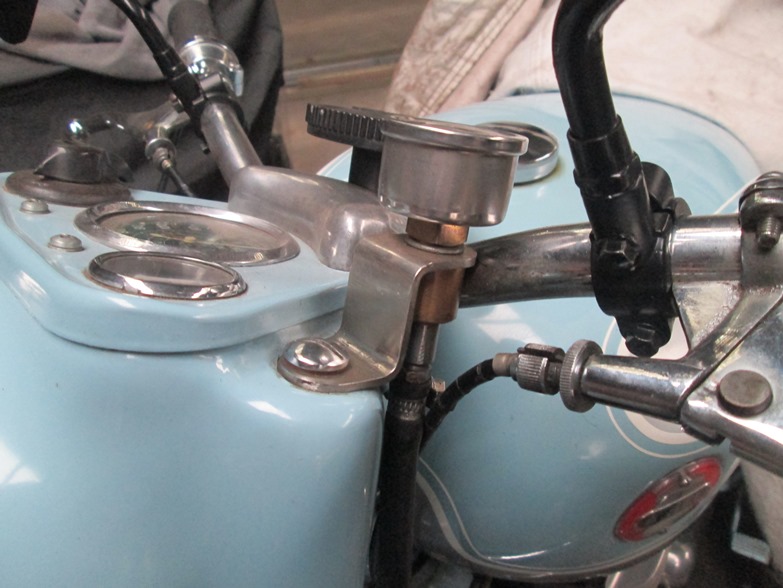

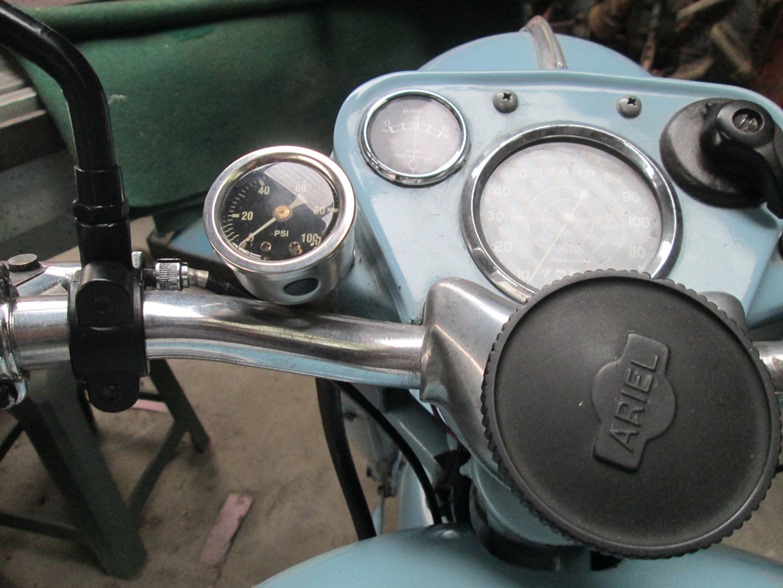

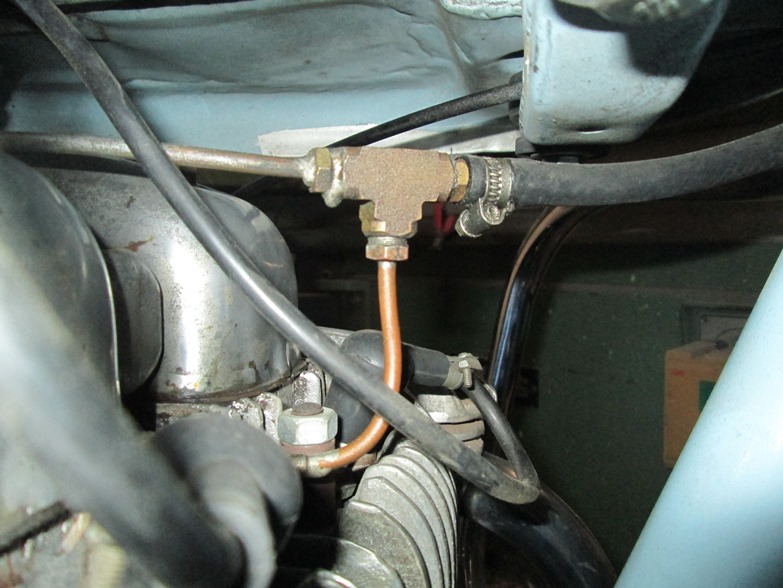

from the rocker feed. the black oil line is to the gauge.
David
Top
BrianReynolds
Posts: 34
Joined: Mon May 13, 2019 4:03 am
Location: Manitoba, Canada.
Contact:
Contact BrianReynolds

Re: S4 oil pressure Gauge

Post by BrianReynolds »

Thanks, very helpful responses, appreciated.
