WNG Rear Mudguard measures

[LuisPaz]

Thank You Johnny!

Today continue with the mobile stays

My read mudguard is Frankestain!





The angle is wrong... needs to be corrected

[alan.moore]

Looking good Luis

[LuisPaz]

Thank You Alan!

The screw to join stays to mudguard are 1/4 " diameter , and what thread?

https://www.draganfly.co.uk/index.php/c ... oduct/537-

Regards!

[JohnnyBeckett]

HI Luis i think if they look like a fine thread it is 26 TPI CEI ( CYCLE THREAD ) or if it looks like a course thread it is BSW ( WHITWORTH ) that is the common threads that i use on most of my Ariel's some times i find someone has used different type of bolts and screws if they did not have the right ones like the ARIEL i am doing now it got lots of all different types of nuts and bolts with the wrong threads and nut sizes

[alan.moore]

Luis
26 tpi cycle thread, same as the majority of the fastners.
Cheers
alan

[JohnnyBeckett]

HI most of the bolts and screws are 26 TPI but their is some BA as well on the bike but the engine and gearbox are mostly BSW

[LuisPaz]

I need turning the mudguard stay nut..
Can tell me the hexagon size?

Thanks in advance!

[LuisPaz]

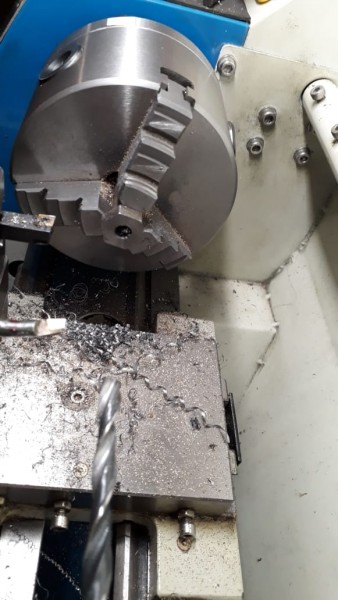

Today working with Lathe . Nut ready to cut and threading. I think this is NO correct nut to WNG because cannot put the pannier frame bracket....

[alan.moore]

Adrie

Here are the two nuts from my WNG, as far as I know they are original. I had a problem in that with the pannier mounting brackets fitted I could not get a spanner on these nuts as they were too big. I then used two half width normal size 5/16 nuts with washers for the raised part to solve the problem.

Cheers
Alan

[LuisPaz]

Hi Alan!
Thank you very much for your help!
My head nut have 21/32.... they are a pair of bolts that I found in the waste can!
